Process

OS manages user-level and kernel-level processes, which includes creating, managing, scheduling and terminating.

A program in execution. An active entity. Program becomes active when it is loaded into memory. Instructions of a process are executed in sequence. Multiple processes can be associated with a single program.

A process contains:

• text section: the program code
• program counter
• CPU registers – current working values
• data section: global/static variables
• stack: function calls, return addresses, local variables.
• heap: dynamically allocated memory
• data section: containing global variables

Multithreaded processes have 1 program counter per thread.

Program

A passive entity stored on disk. Aka. executable file.

System Program

Programs that provide services to the user and the OS. Shipped with the OS. Not part of the kernel.

Context

Complete set of information about a process, that is required to pause, and later resume it exactly where it left off.

Includes:

• process id, state
• parent process id
• program counter
• stack pointer
• register contents
• memory mappings
• open files (file descriptors)
• scheduler information such as priority, queue pointers
• I/O devices
• signal handlers
• accounting information such as CPU time used, memory usage, I/O operations
• other critical data

Context Switching

The technique of saving the current process’s context and loading another process’s context. Required for multitasking. Introduces overhead.

Process Control Block

Aka. PCB, task control block. Representation of a process’ context.

Representation in Linux

struct task_struct {
    pid t_pid; /* process identifier */
    long state; /* state of the process */
    unsigned int time_slice; /* scheduling information */
    struct task_struct *parent;/* this process’s parent */
    struct list_head children; /* this process’s children */
    struct files_struct *files;/* list of open files */
    struct mm_struct *mm; /* address space of this process */
}

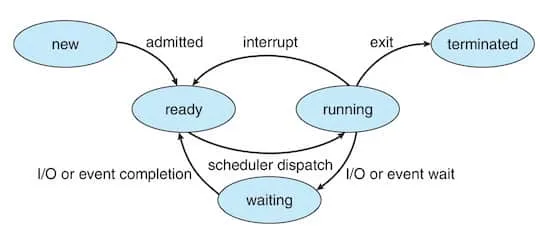

Process States

New

When a process is being created. Resources are allocated and the process is prepared to be admitted to the ready queue.

Ready

When a process is loaded into memory and ready to run.

Running

When a process’s instructions are being executed on a CPU.

Waiting

Aka. blocked. When a process is waiting for an event or a resource. Waits in an event-specific queue until the condition is satisfied.

Terminated

When a process has finished execution or been killed. Its resources are reclaimed and a cleanup is performed.

Zombie

When process is in terminated state, but its exit status has not yet been collected by its parent. Once the parent collects the exit code (using wait() or waitpid()), the process entry is completely deleted.

Orphan

When a parent process terminates before its child process. The orphaned child is adopted by the init process (PID 1).

Process Scheduling

The procedure of choosing which process runs next. Handled by process scheduler. Maintains scheduling queues of processes.

Ready Queue

For processes waiting to run.

Wait Queues

For processes waiting on events (I/O).

Processes move across these queues continuously.

Process Creation

Parent–Child Model

A parent creates a child, forms a process tree. Parent and child may or may not share all or a subset of resources. Parent and child may run concurrently; or parent may wait for child to complete.

In UNIX:

• fork()
  Duplicates current process. Returns 0 to child, child’s PID to parent.
• exec()
  Loads new program into process
• wait()
  Parent waits for child to finish, retrieves exit status

Process Termination

Mobile OS often have to terminate processes to reclaim system resources such as memory. From most to least important:

• Foreground process
• Visible process
• Service process
• Background process
• Empty process

Normal termination

When a process finishes, it calls exit() to terminate itself. Its exit status is read using wait() by the parent.

Abnormal termination

Parent may kill the child via abort(). Possible reasons for killing:

• Child exceeded resources
• Child’s task is unnecessary
• Parent itself is exiting

On some systems, the OS would kill the entire subtree when parent dies, which is called cascading termination.
