State Diagrams

P-T Diagram

Saturation Dome

Region on T-v diagram or P-v diagram bounded by saturated liquid line (left) and saturated vapour line (right).

The mixture region lies under the dome.

Phase Diagram

A graph of pressure vs. temperature. Represents the conditions under which a substance exists in a each phase.

Fusion line

Boundary line between solid and liquid phases. Represents the conditions at which a substance melts or freezes.

Evaporation line

Boundary line between liquid and gas phases. Represents the conditions under which a substance boils or condenses.

Sublimation line

Boundary between the solid and gas phases. Represents the conditions under which a substance sublimes (solid to gas) or deposits (gas to solid).

Critical line

The line that ends at the critical point, beyond which the liquid and gas phases become indistinguishable; it represents the highest temperature and pressure at which a liquid and its vapor can coexist.

Critical point

A unique set of temperature and pressure at which the distinction between liquid and gas phases disappears. Denoted as ($T_c$, $P_c$). Here $T_c$ is the critical temperature and $P_c$ is the critical pressure.

Above the critical point, the substance exists as a supercritical fluid.

Triple point

A unique set of temperature and pressure at which all 3 phases of a substance coexist in equilibrium.

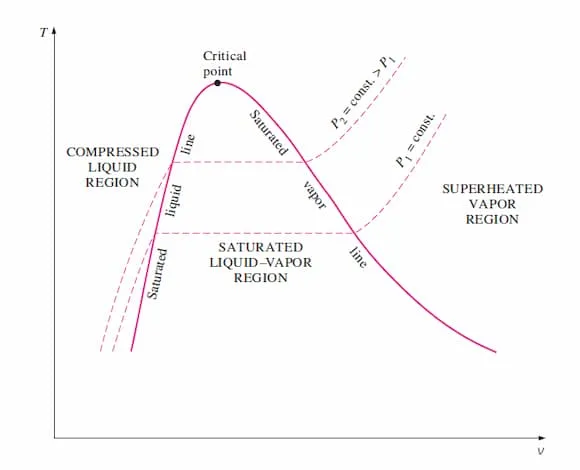

T–v Diagram

Graph of temperature vs. specific volume. Used to visualize phase changes at a given pressure. Temperature remains constant under the dome.

Image from lecturer’s slides

• In compressed liquid region: temperature rises with small volume change.
• At saturated liquid line: temperature fixed at $T_\text{sat}$; boiling begins.
• Under the dome: temperature constant; volume increases as $x$ increases.
• At saturated vapour line: phase change complete.
• In superheated region: both temperature and volume rise.
• Critical point is the peak of the dome.

Isobar

Line of constant pressure. Bend upward.

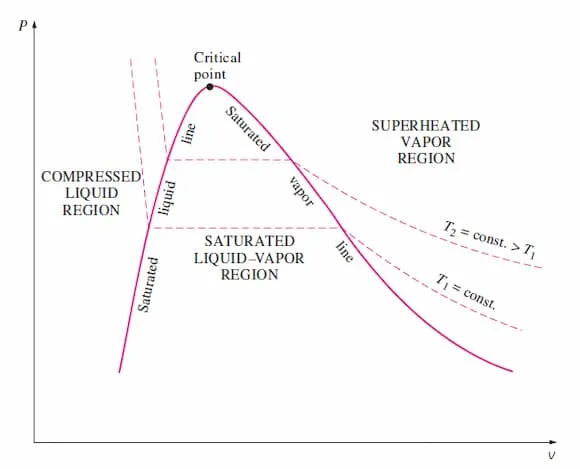

P–v Diagram

Graph of pressure vs. specific volume. Used to visualize phase change at a given temperature. Pressure remains constant under the dome.

Image from lecturer’s slides

Saturation dome similar to T–v diagram but curved differently.

Under the dome: mixture region with constant-pressure lines.

• During boiling at fixed temperature: pressure stays constant.
• Specific volume increases sharply across the mixture region.
• The flat segment length relates to the latent heat.

Isotherm

Line of constant temperature. Bend downward.

• At $T < T_c$: isotherm cuts across dome in a horizontal line, representing constant-pressure phase change.
• At $T > T_c$: no flat region; fluid behaves as a supercritical gas.

P-v diagrams are mostly used to visualize isothermal processes. Constant-temperature lines help interpret behaviour of real fluids compared to ideal gases.

P-v-T Surface

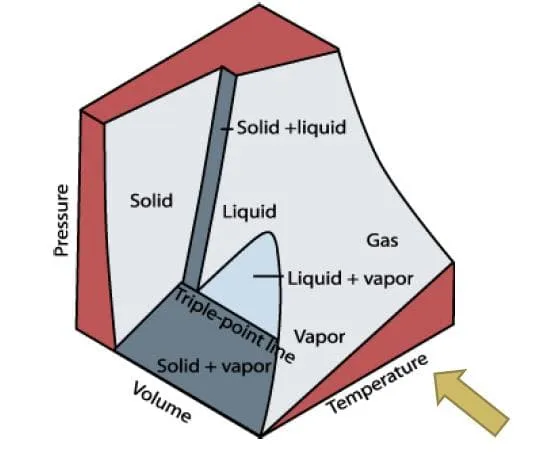

Substance that contracts on freezing

Image from lecturer’s slides

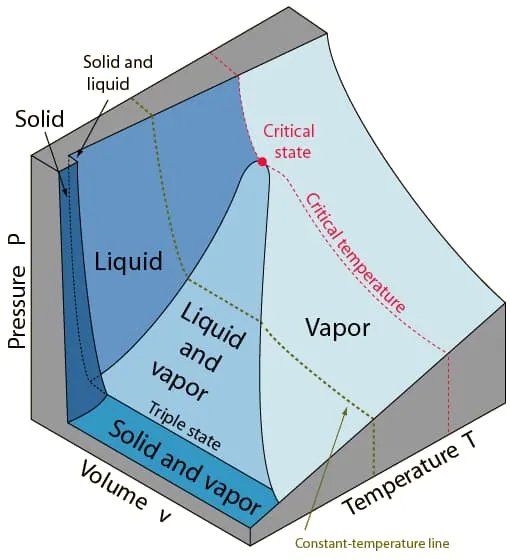

Substance that expands on freezing

Image from lecturer’s slides
